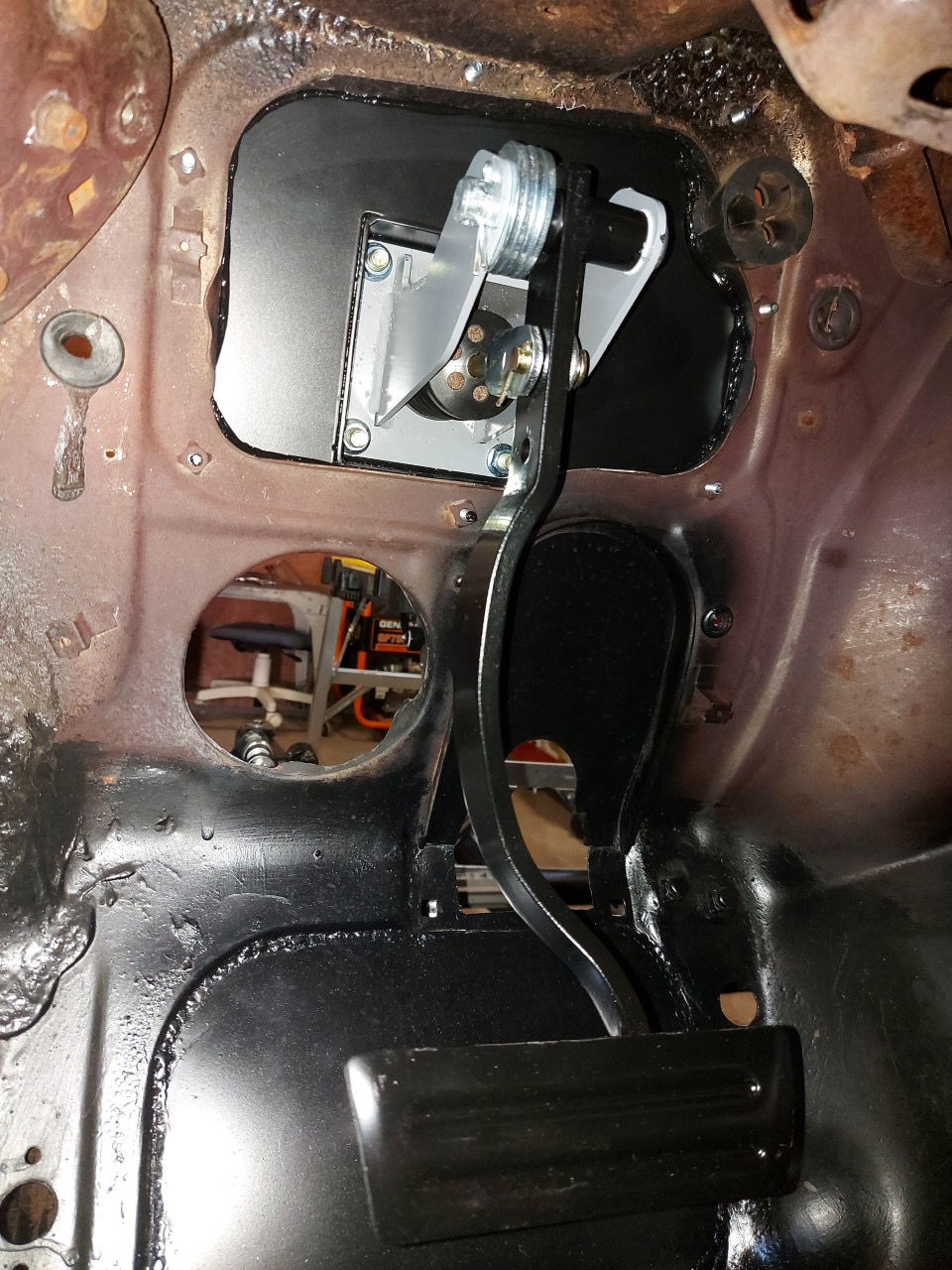

This is a complete bolt in kit that uses a modern power booster and dual circuit master cylinder mounted to the firewall using the factory firewall access plate opening. It includes a new brake pedal that swings from a higher location (looks like it could be original too). This modern GM booster and master cylinder give a significantly improved braking feel and power while adding safety through the dual circuit system.

This can be used with factory drums, disc/ drum or disc/ disc. Select what brakes you have at checkout and I will send the correct proportioning valve.

It will have the pedal feel of a modern car- minimal effort required with a positive and firm feel. No more soft or sloppy pedal!

Installation is fairly straightforward- no cutting required, this kit doesn't involve anything permanent that can't be undone in a couple hours! You have to remove the driver side firewall access plate, master cylinder, and then this kit bolts in.

Two brake lines are included although the included lines will require some finesse by the installer. One goes from rear proportioning valve to the original junction block mounted to the driver side frame rail in place of the line that originally lead to the front brakes.  The other brake line goes from the front of the new proportioning valve to the factory T junction block located near the front driver side wheel and feeds the front brakes. Installation time is about 4 hours.

This ONLY works on 1950, 1951, 1952, and 1953 Buicks Super and Roadmaster models, NOT the Special model.

This kit comes with everything including proportioning valve, brake lines, and hardware! All you need is brake fluid and a port on your intake to plug into vacuum.

Included Parts:
Firewall box
Brake pedal bracket
Brake pedal W/ clevis pin, bushings and rubber pad
GM style brake booster
GM style master cylinder
All new high quality bolts
2X 3/16" brake lines- custom cut, bent, and flared
Proportioning Valve w/ mount bracket and metal lines (mounts beneath MC, pictured)
3/8 Vacuum hose
Misc. hardware

Brake booster options:
-9" single diaphragm vacuum booster in gold zinc. This is the best optoin for drum/drum brakes. Anything more will feel too powerful. This is what's pictured here on the website.

-9" single diaphragm booster, in chrome, otherwise same as above option

-11" single diaphragm booster in varying finish of gold zinc or black powdercoat. This is the best option for disc/disc or disc/drum. This booster is considreably more powerful than the 9" booster. Our supply of the finish is inconsistent so we provide which finish is available.

-Hydroboost. This booster uses power steering fluid rather than vacuum. It is our most powerful booster, and over kill for most applications. The booster housing is longer so it may cause minor interference issues. This is best for high horsepower applications without a good vacuum source and with front disc brakes.

Proportioning valve optoins:
-PV4 works for drum/drum or disc/disc. It proportions the brake fluid pressure eqully front and rear.
-PV2 works for disc/drum. it proportions the brake fluid pressure with a front bias.

All metal parts are CAD designed, laser cut, formed on a computer controlled press brake, professionally tig welded, and powdercoated satin black for consistent high quality results.
